50mm D1 Incubator Filters

Code: PTFE050N022O-PC(type3)
Price: Contact
◆ Specifications : 50mm
◆ Model :
PTFE050N022O-PC(type3)
◆ Filter : PTFE
◆ Material : PC
◆ Flow direction : one directions
◆ Aperture : 0.2um
◆ Sterilization method :  E.O sterilization
◆ Packing : 12pcs / bag

Reviews:


◆ Product Description
1.  PASS HEPA TEST
2.  ¼” Hosebarb x ¼” Hosebarb
3.  High flow rates at low differential pressures
4.  Rugged PC housing withstands high temperatures, pressures and aggressive solvents
5.  High particulate-loading capability to maintain flow rates over extended periods
6.  Manufactured in clean room under controlled Conditions
7.  Autoclave
8.  Accept ID 7-13 mm tubing
9.  It is specially fit for aseptic ventilation of small size fermentor and culture mdium tank.

Application
►HPEA level, 0.3um particle filtration rating of more than 99.99%
► Applicable diameter 7-13mm tube, exclusive PC shell can be steam sterilization use
► Enclosure meets the USP Class 6 test
► Application:
                      (1) Autoclave Filters
                      (2) Vacuum Pump Filters
                      (3) Pipette Controller Filters
                      (4) Ink-Jet Filters
                      (5) Gas Analyser Filters
                      (6) CO₂ Incubator Filters
                      (7) small fermentation tank air filtration
                      (8) Online air filter
                      (9) single flow (master)
                      (10) PC level
                      (11) suction pump front-end buffer device
                      (12) material feeding bottle

◆ Specification

Part No.

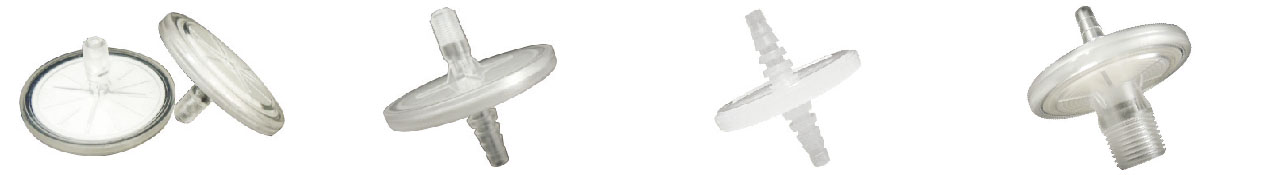

Type 1 (A2-1) Type 2 (A2-2) Type 3 (A2-3) Type 4 (A2-4)
Model No. PTFE050N022O-PC PTFE050N022O-PC PTFE050N022O-PC PTFE050N022O-PC

Biosafety Meet the requirements of USP Class VI Biological Test for plastics
Connection

Hydrophobic PTFE

50mm 0.22um air filter

Inlet:1/8" NPT

(Accepted ID7-13mm)

Hydrophobic PTFE

50mm 0.22um air filter

Inlet:Stepped Hose Barb

Outlet:1/8" NPT

(Accepted ID7-13mm)

Hydrophobic PTFE

50mm 0.22um air filter

Inlet:Stepped Hose Barb

Outlet:Stepped Hose Barb

Hydrophobic PTFE

50mm 0.22um air filter

Inlet:1/2" NPT

Outlet:Stepped Hose Barb

Filtration area 19.6cm²
Air flow rate 18-20 LMP @ 1kg/cm²
Housing size 65mm
Housing material Polycarbonate or Polypropylene
Sterilization EO or Autoclave
Pore size 0.22um、0.45um、1um or other pore size
